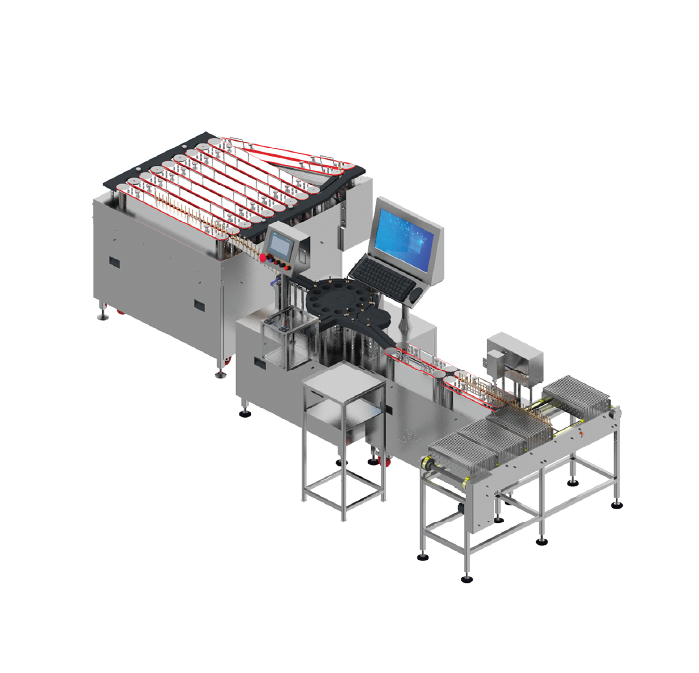

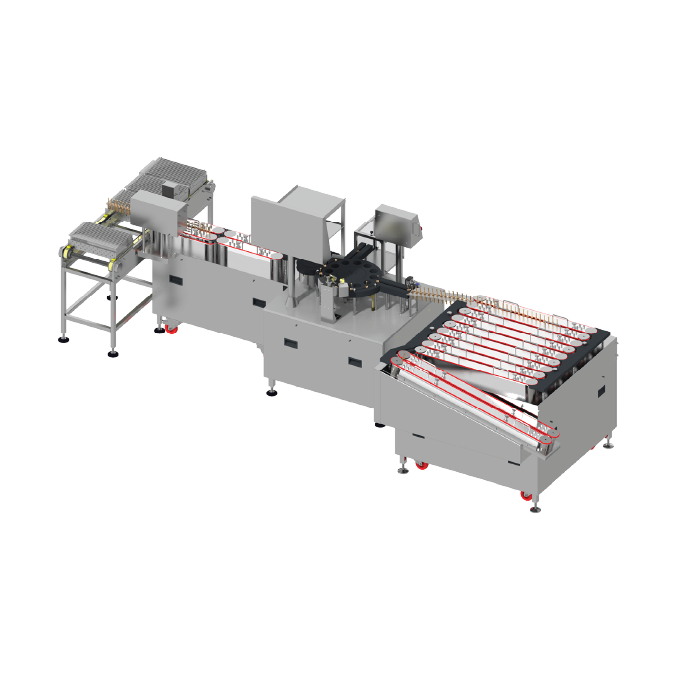

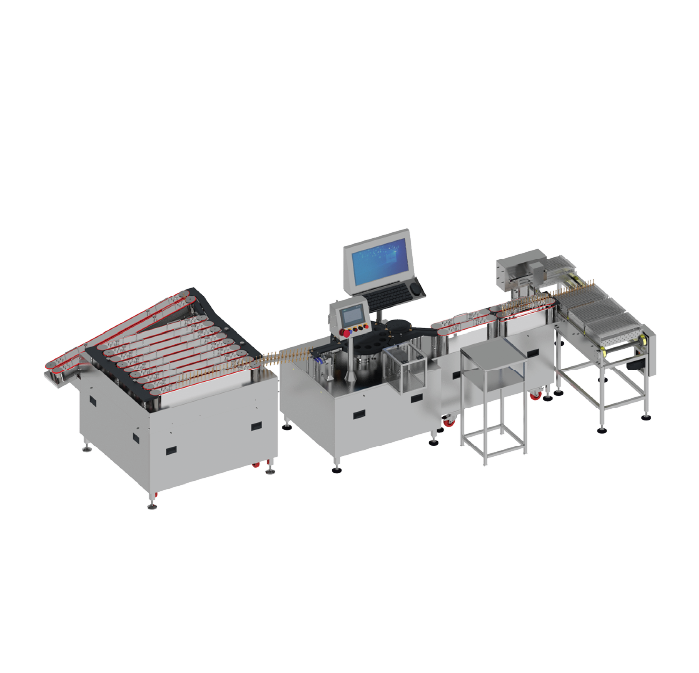

PFS Inspection And Magazine Collection Machine

Is designed to inspect the flange portion of the syringe inserted in the Safety Inspection Mechanism – Vision System (COGNEX Camera).

Identify and reject defects, such as

  • Flange cracks
  • Flange chip-off
  • Ejetion locking of safety device.

The Design developed for for PFS of fill Volumes

  • 0.5ml
  • 1.0ml
    Can be Customized as per client requirement.

Designed Speed – 250 Syringes/min foe 1ml Syringe

  • Slope Conveyor
  • Buffer Conveyor
  • Rotary mechanism integrated with Vision System for Flange Inspection
  • Pusher Unit
  • Automatic magazine collection unit.
  • Outfeed of PFS Labelling
  • Plunger Rod and Safety Device Fixing Machine.
  • 3 Phaase, 415V ± 10V, 50 ± 5Hz
  • Compressed Air – 4 to 6 Bar.

L – 3980mm, W – 1766mm and H – 1425 ± 25mm

Note: The Overall Dimensions of our Equipment is Customized, based on the Client requirement. / Space availability at site.

Key Features

  • Design is in line with GMP and GAMP 5 requirements.
  • In compliance with 21 CFR Part 11 requirements.
  • Equipped with necessary Safety and Process Interlocks.
  • Multiple recipes can be created
  • With IPC Model; Customized Reports (Including Trends) can be provided
  • Moreover, if need be data can be parallely saved or stored in Clients Server.
