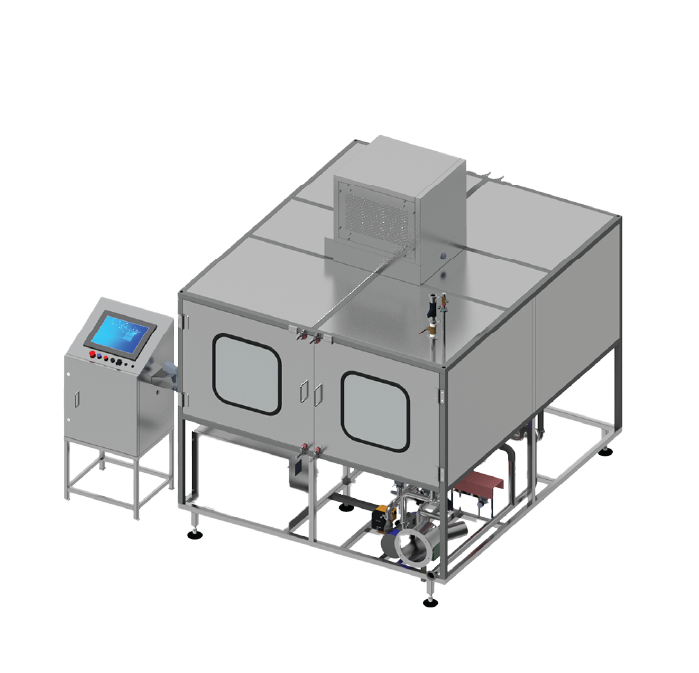

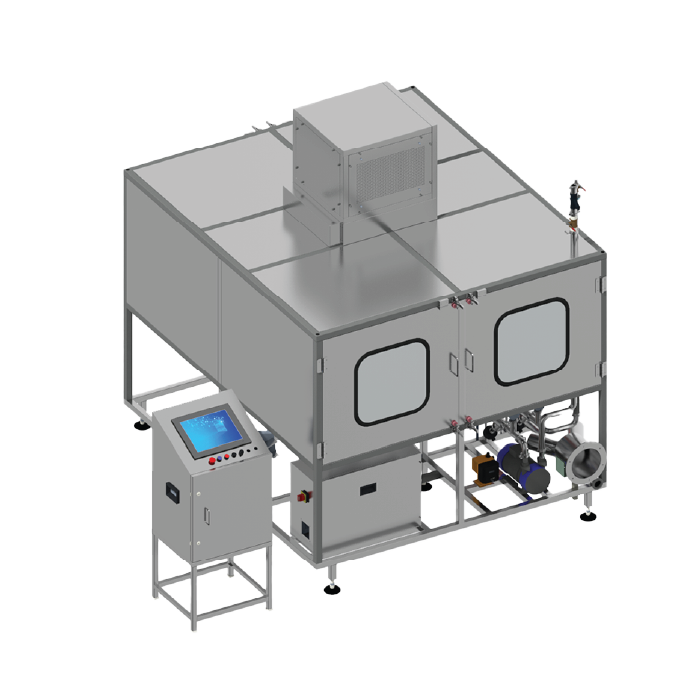

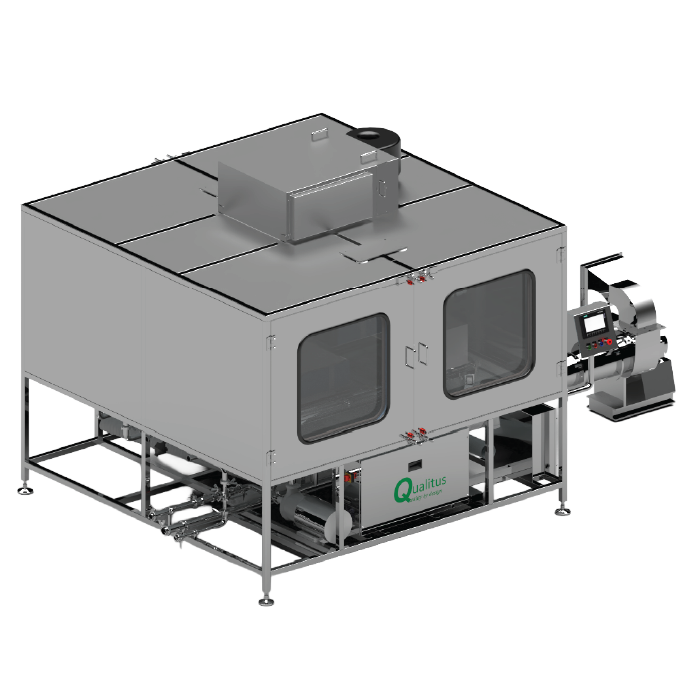

Filter Cleaning Equipment

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since 1966, when designers at Letraset and James Mosley,

Equipment Is designed for performing Exclusive / Combi-functional units.

  • Cleaning
  • Drying
  • Combo-Unit (Both cleaning and drying)
  • Filter Integrity Testing

Equipment is available in following variants

  • Basic Model (Pre-Loaded Program).
  • With HMI & SCADA
  • With IPC.

Equipment is suitable for accommodating both type of Filters

  • Flange
  • Box
  • Atmospheric dust
  • Water soluble bulk powder deposit.
  • 1 / 2 / 4 Filters

* Conditions Apply:
1) Depends on the Equipment Size, decided in line with  room layout, and
2) Considered Minm. and Maxm. Size of Filters

  • Minm. Filter Size: 305 * 305 * 50 mm.
  • Maxm. Filter Size: 610 * 610 * 305 mm.
  • Electrical Power: 3 Phase, 415 ± 10 Volts, 50 ± 5 Hz.
  • Compressed Air: 6 Bar.
  • Soft Water: 60 LPM at 1 Bar
  • Plant Steam: 2kg/min @ 1 to 1.5 Bar.

Cleaning and Drying Cycle is as follows

  • Air Clean (with Compressed Air)
  • Water Wash
  • Hot Air Drying with Blower (Either With Heater / Plant Steam, as applicable)

No. of Filters cleaned (i.e. Output) per hour.

  • 4 to 8 Filters per hour (For 610 * 610 *305 Filter Size)

Optional supply

  • Dust Collection Unit
  • Scrubber Can be customized to suite Injectable, OSD, API, Bulk and Biologics manufacturing  units.

Sequence of Operation

  • Filters are loaded over and secured to the Filter Holding frame.
  • Doors are closed and respective push button / soft key (As applicable) is pressed for starting the Cycle.
  • Post Air Clean, Water Wash is initiated. And is followed by Hot Air Drying.
  • Before the filters are unloaded from the doors at the Unloading end.
