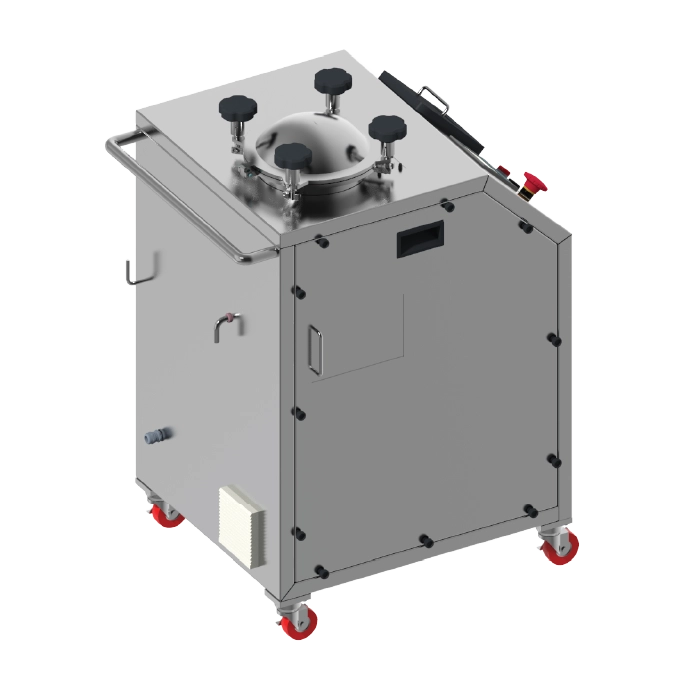

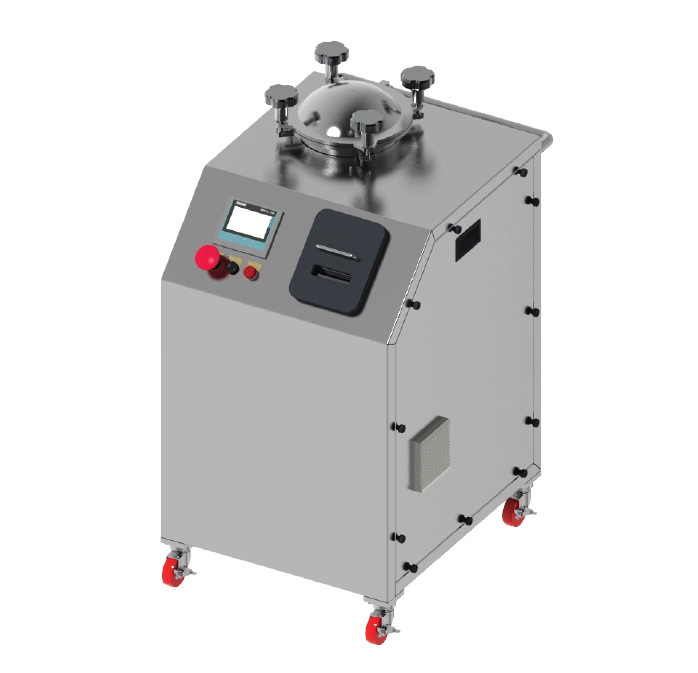

Closed Container Integrity Tester

Designed to perform leak testing upon container closure systems using DYE INGRESS METHOD. Solution used is 0.1% concentration of Methylene blue solution (in purified water topped up to 50% volume of the testing chamber.

Leak test can be performed to identify the integrity of the container
of Vials, Ampoules, Cartridges, PFS and IV bags.

  • Vacuum: 650 mm Hg
  • Pressure: 740 mm Hg


Operating environment conditions:

  • Temperature: 15° C to 50° C
  • Relative Humidity: 25% to 80%

Vacuum, Retention, Vacuum hold, Vacuum vent,
Pressurisation, Stabilisation, Pressure holding, Air vent, Atmospheric hold

  • Electrical: 1 Phase, 230 V ± 10 V, 50 ± 5 Hz
  • Compressed Air: Moisture-free, 5 Bar
Common Equpment-03

Key Features

  • Designed in-line with cGMP and 21 CFR Part 11 requirements
  • Equipped with essential process interlocks for safe operations
  • Supports creation and selection of multiple recipes / Process parameters

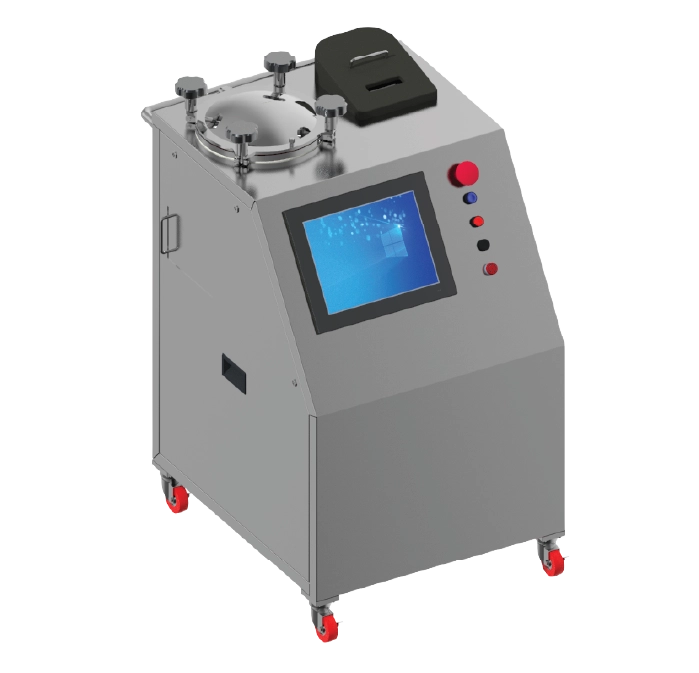

  • With IPC Model; Customized Reports (Including Trends) can be provided.
  • Generates customized reports (including trends), automatically stores historical data (test
    reports, alarms, audit trails)
  • Provides automatic Pass/Fail reports after cycle completion, option for parallel data storage on
    client-server
  • Closing of lid: Manual Leak testing cycle: Automati
