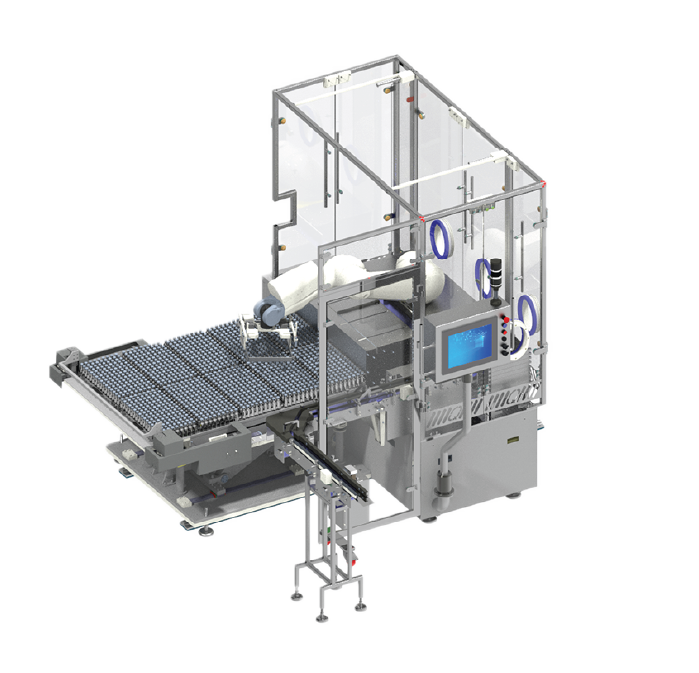

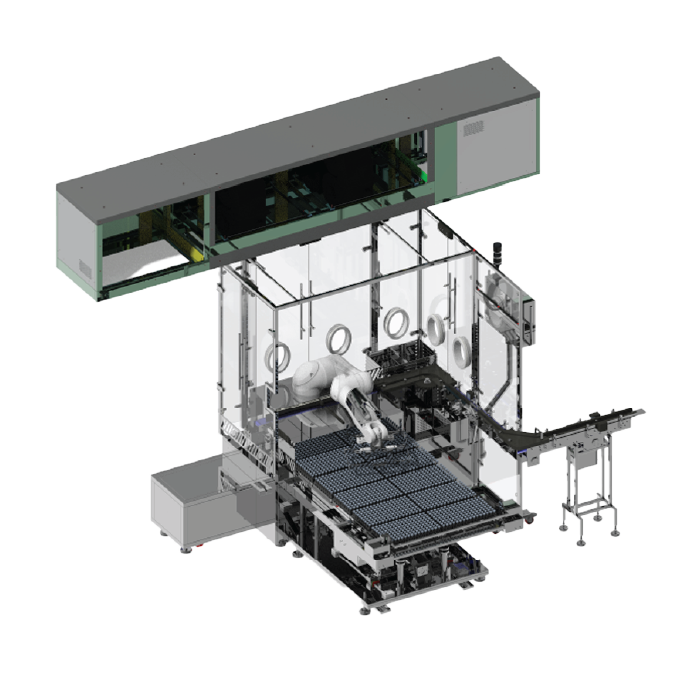

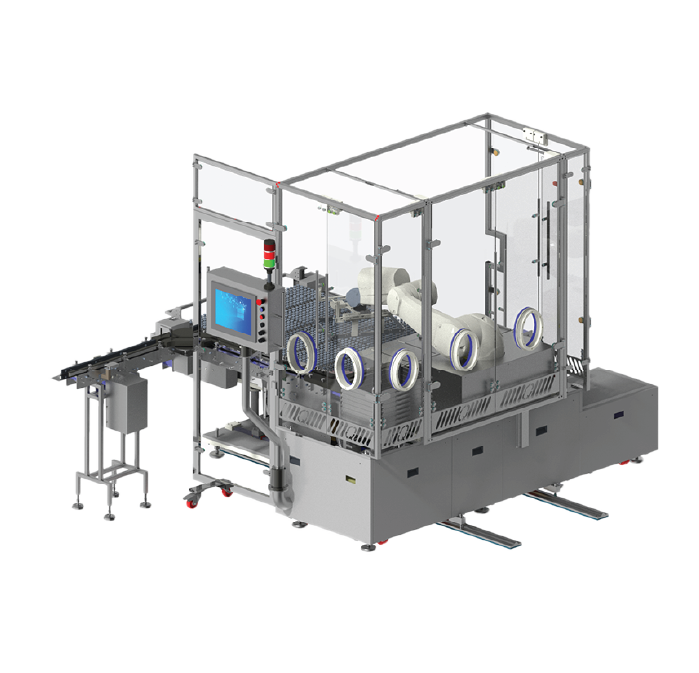

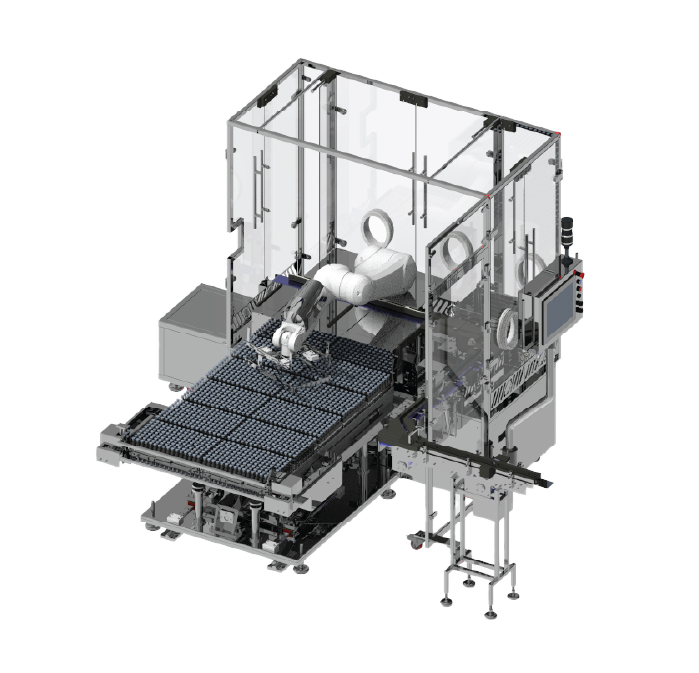

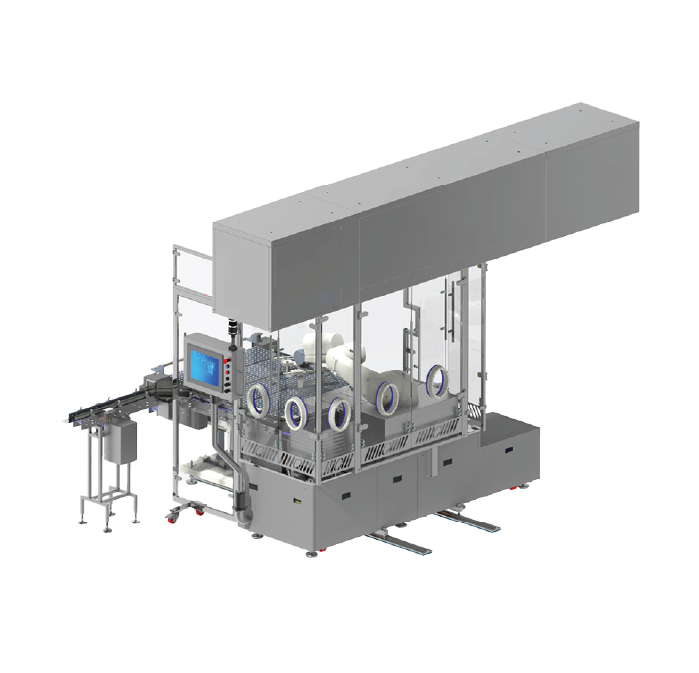

Automatic Loading And Unloading System For Lyophilizer

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat

Designed to meet the requirements of Lyophilizer, with

  • MAIN (i.e., Service) DOOR
  • PIZZA DOOR
  • both MAIN and PIZZA DOORs
  • Fixed Shelves (Variable Height Loading)
  • Collapsible Shelves (Fixed Height Loading)
  • Row * Row Matrix
  • Mass Loading
  • Loading With Rings
  • Robotic Arm for Ring Pick and Place.
  • Ring Stacking Unit.

Our equipment along with ROBO is clean room compatible (is meant for operating in Class 100 Environment).

LAF and Barrier can be provided.

  • 3 Phase, 415 V ± 10 V, 50 ± 5 Hz.
  • Moisture Free compressed air — 4 to 6 Bar.
  • The Automatic Loading and Unloading System for Lyophilizer is designed to transfer partial stoppered vials from out feed of Vial Filling Machine to Lyo.
  • Servo controlled pusher mechanism is provided with servo-controlled pusher star wheel, to transfer the vials in line with programmed matrix, from transfer conveyor into buffer table.
  • Ring is placed on the programmed vial matrix by ROBO.
  • Each of the Rings (guiding the defined vial matrix) in a Row are connected to one another before being pushed into / loaded onto the respective shelf of the lyophilizer.
  • During unloading, the inter-connected rings are automatically pulled out and are thereafter disengaged one after the other (i.e., as the vials in each of the rings are transferred onto the out feed) by ROBO.
  • These rings are piled up in the Stacking unit for moving and make them ready for the next batch.

Key Features

  • 21 CFR Part 11 Compliance system.
  • Reduced Loading and Unloading Time and Cost, thereby. Increased productivity.
  • Asceptic handling by avoiding human intervention.
  • Ease of operation.
  • Overall dimension of our equipment is customized, based on the client required option, features and available space.
